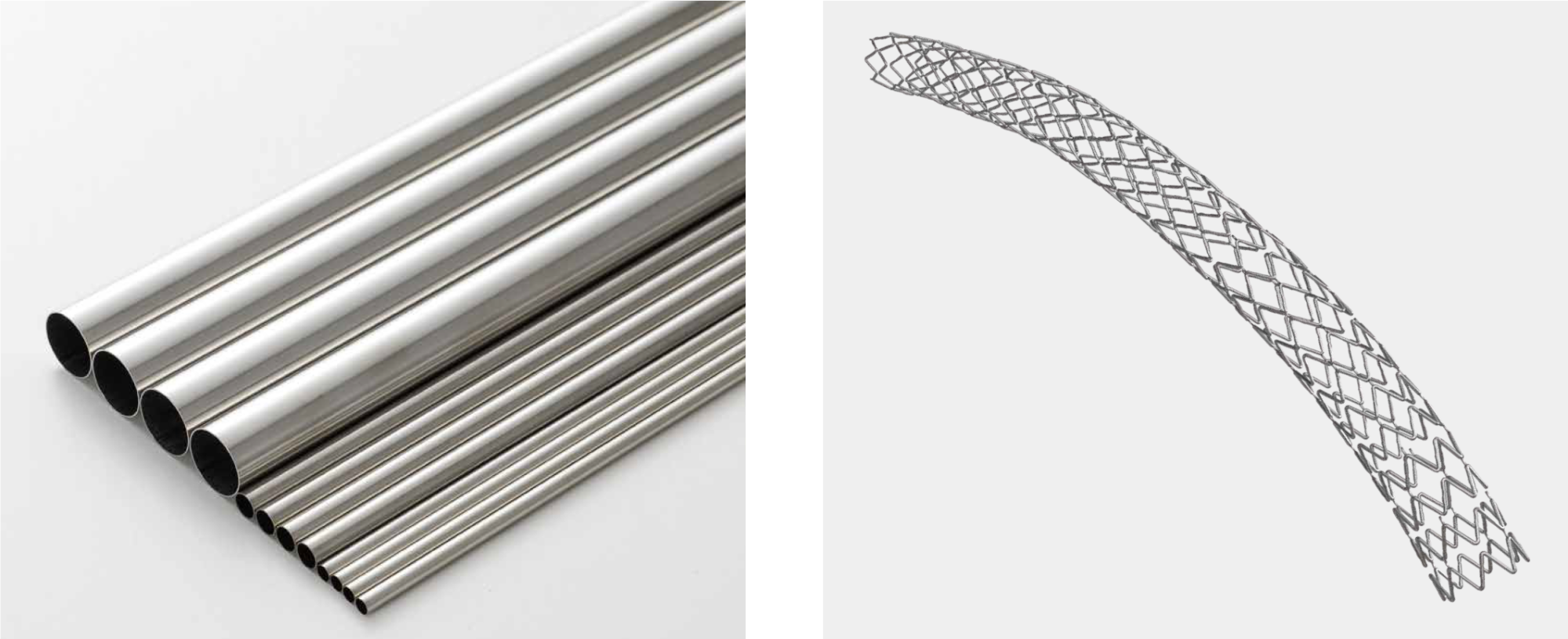

With ultra-high elasticity and exceptional mechanical strength, these non-magnetic tubes excel in durability and heat resistance.
They are characterized by superior tensile strength and yield strength. MP35N and L605 also exhibit outstanding resistance to sulfides, high-temperature oxidation, and hydrogen embrittlement, making them highly corrosion-resistant materials.
Thanks to their high fatigue strength, these tubes resist fatigue failure, even under repeated stress.
The exceptional mechanical properties and high corrosion resistance of MP35N and L605 make these tubes particularly useful in the field of interventional radiology (IVR), where they are often used in the manufacture of stents.
We offer OEM production of these tubes in custom sizes to meet your specific needs.
Chemical Composition
MP35N
| C | Mn | Si | P |
| ≦0.025 | ≦0.15 | ≦0.15 | ≦0.015 |
| S | Cr | Ni | Co |
| ≦0.01 | 19.0-21.0 | 33.0-37.0. | Bal. |
| Mo | Fe | Ti | |
| 9.0-10.5 | ≦1.0 | ≦1.0 |
L605
| C | Mn | Si | P |
| 0.05-0.15 | 1.0-2.0 | ≦0.40 | ≦0.003 |
| S | Cr | Ni | Co |
| ≦0.01 | 19.0-21.0 | 9.0-11.0 | Bal. |
| Fe | W | ||
| ≦3.0 | 14.0-16.0 |

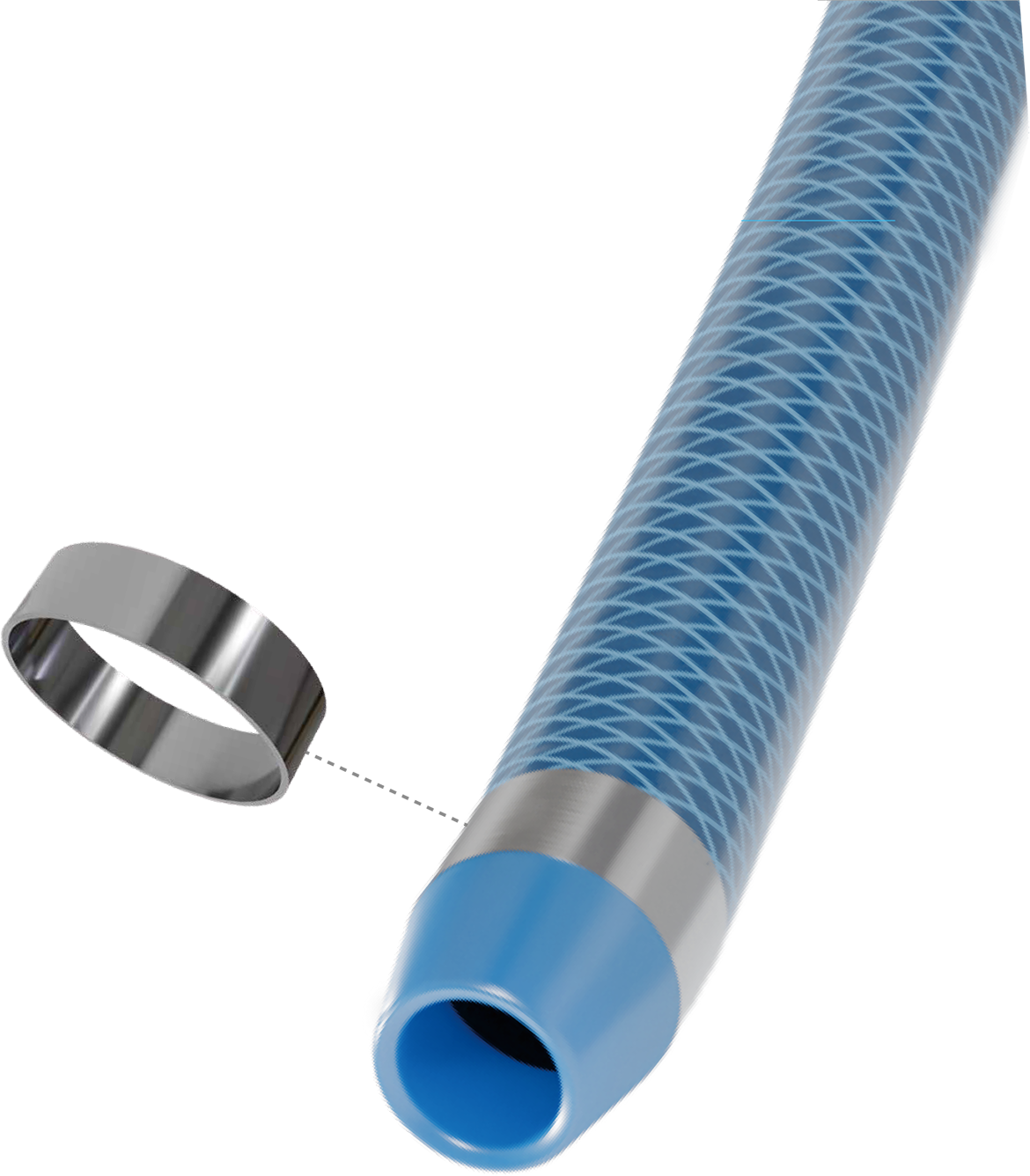

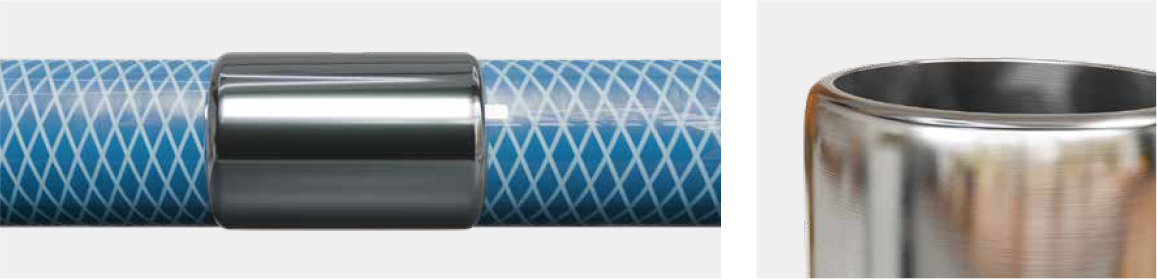

Our marker rings are designed with a focus on precision, reliability, and safety,
thereby supporting effective and efficient patient care.
Key Features:
- Enhances visibility under fluoroscopy
- Facilitates accurate catheter positioning
- Designed for precision and reliability
Material Options:
- Pt (Platinum), PtIr (Platinum-Iridium)
Size:
- Typically less than φ4.0mm (outer diameter)
- Custom dimensions available upon request
We can also supply the rings with chamfered edges as an optional feature.

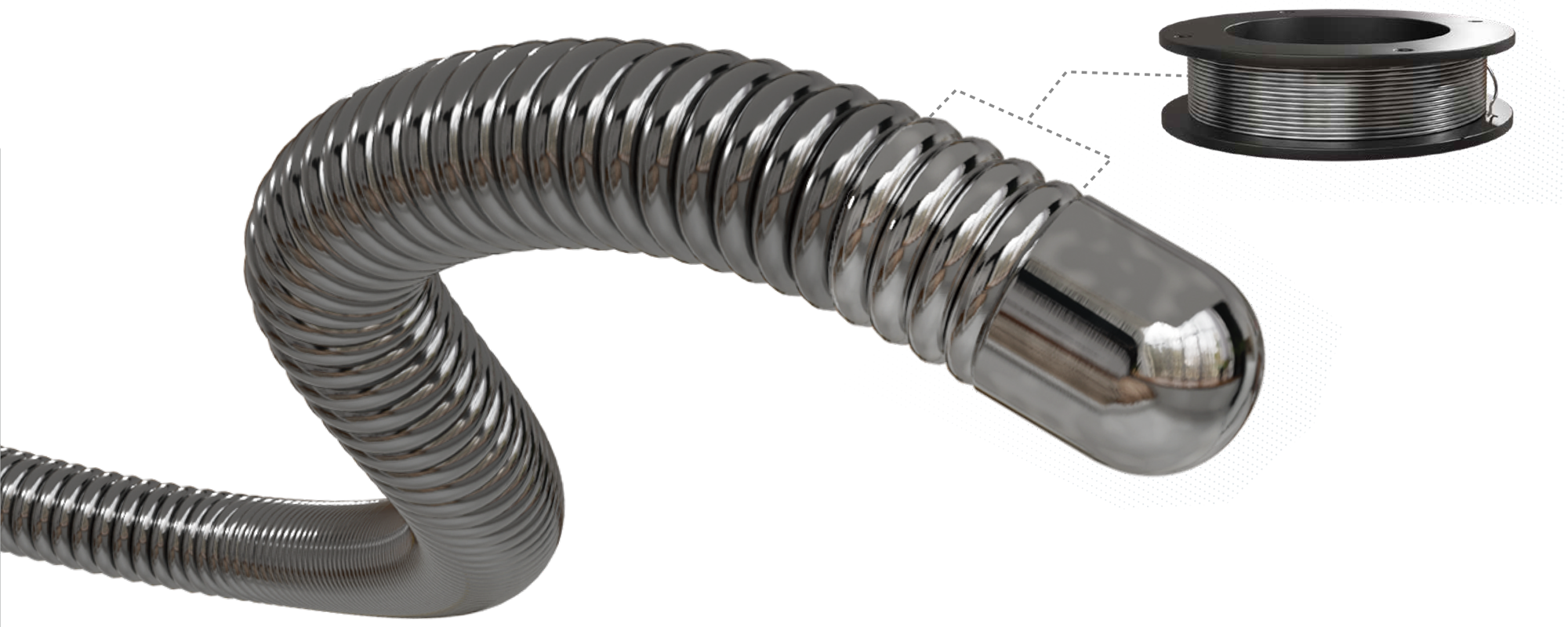

Platinum Tungsten Wire is an advanced medical guidewire designed for a wide range of interventional procedures.Composed of 92% platinum and 8% tungsten, this wire offers unique properties that make it highly suitable for medical applications.The size can be customized to meet your specific requirements,
and we can accommodate extremely fine diameters, down to approximately 10 μm.
Key Features：
- Enhanced Visibility and Control
The high radiopacity and flexibility of the wire ensure precise control and positioning, critical for delicate procedures.
- Durability and Safety
With excellent corrosion resistance and biocompatibility, the wire offers durability and safety, suitable for long-term implantation.

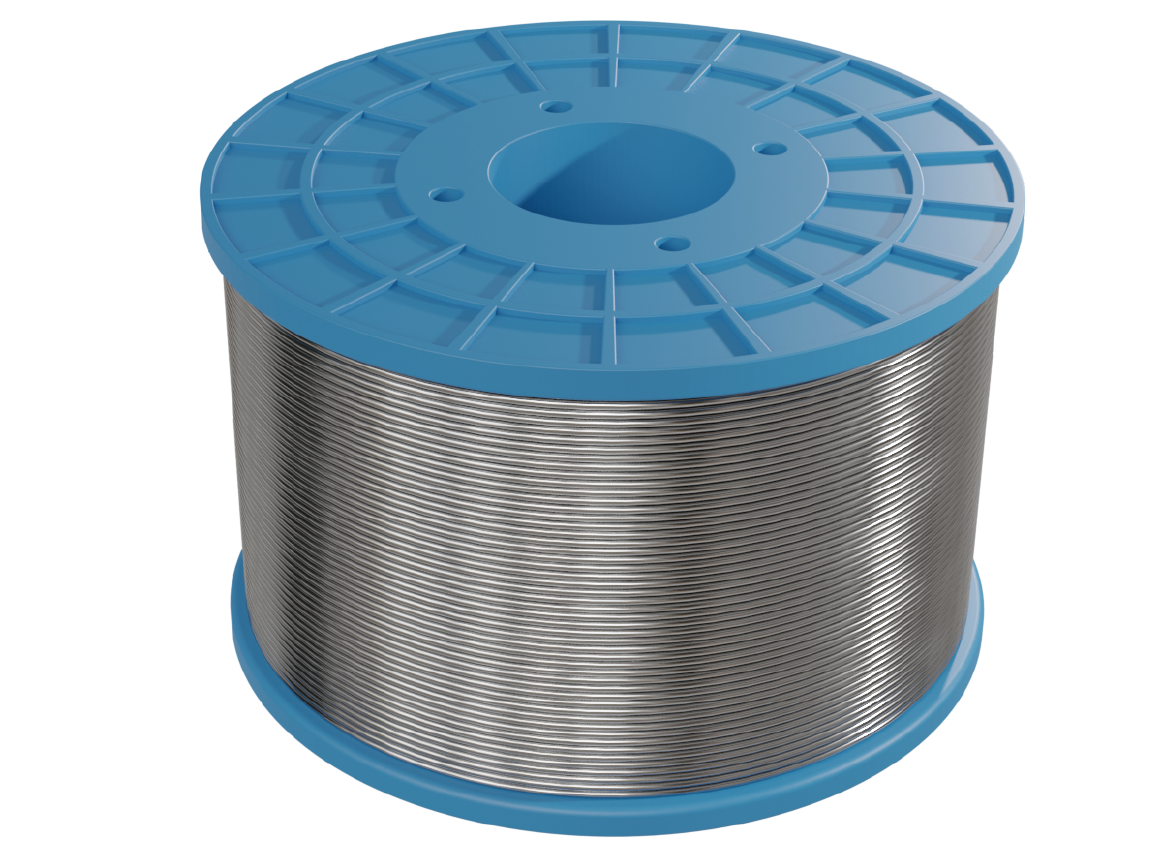

We supply silver-plated copper wire specifically designed for the manufacture of IVR catheters.
We can customize the wire's size and length to meet your catheter requirements, so please don't hesitate to consult with us.
The silver-plated copper wire we provide is manufactured in compliance with ASTM B298 standards.

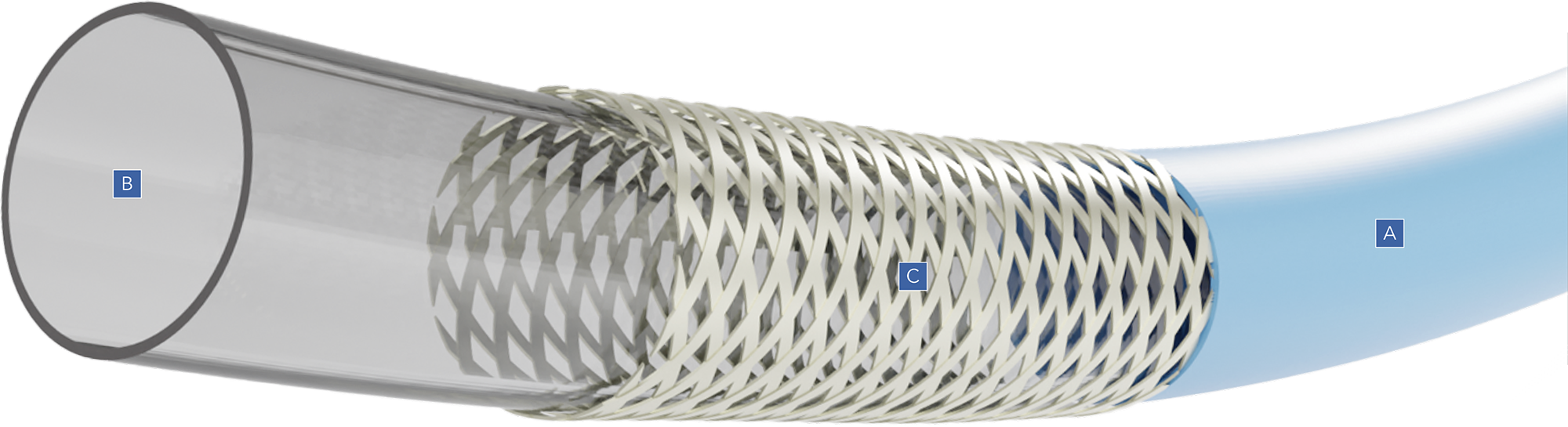

We can supply PTFE-Liners used in the manufacture of IVR catheters.
These are coated over the silver-plated copper wire during the manufacturing process.
Specifications
| Tube I.D （mm） | Tube I.D Tolerance （±mm） | Wall thickness 0.025 （mm） | Wall thickness 0.030 （mm） | Wall thickness 0.040 （mm） | Wall thickness 0.050 （mm） |
| 0.50 | 0.03 | ● | 〇 | 〇 | 〇 |
| 0.60 | 0.03 | 〇 | 〇 | 〇 | 〇 |
| 0.70 | 0.03 | 〇 | ● | 〇 | 〇 |
| 0.80 | 0.03 | 〇 | ● | 〇 | 〇 |
| 0.90 | 0.03 | 〇 | 〇 | 〇 | 〇 |
| 1.00 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.10 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.20 | 0.03 | ー | ● | 〇 | 〇 |
| 1.30 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.40 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.50 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.60 | 0.03 | ー | ● | 〇 | 〇 |
| 1.70 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.80 | 0.03 | ー | 〇 | 〇 | 〇 |
| 1.90 | 0.03 | ー | ● | 〇 | 〇 |
| 2.00 | 0.03 | ー | ー | 〇 | 〇 |
| 2.10 | 0.03 | ー | ー | 〇 | 〇 |
| 2.20 | 0.03 | ー | ー | ● | 〇 |
| 2.30 | 0.03 | ー | ー | 〇 | 〇 |
| 2.40 | 0.03 | ー | ー | 〇 | ● |
| 2.50 | 0.03 | ー | ー | 〇 | 〇 |
●=Shipped within 1~2 weeks,Color=Natural,
I.D/O.D/W.T=Average value Tube W.T tolerance=±0.013mm
Braid wires are used to reinforce catheter tubes, and there is a demand for high strength and ultra-fine wires.
We can also supply round and flat wire made of Stainless, and round wire made of tungsten with high visibility under fluoroscopy.
Tungsten wire
| Ultra fine wire | |
| Diameter | φ0.0025mm～φ0.500mm |
| Tensile Strength | 2500～4200Mpa |
| Blade wire for catheter tube | |
| Marker for X-ray contrast | |
Features
| Very high tensile strength ▼ |
Good X-ray contrast ▼ |
| Incresed tube strength | |
| Tube diameter can be reduced | |
| Tube contrasts | |
| Marker diameter can be reduced | |
Gold plating is also possible to further improve the contrast.
Stainless steel wire
SUS304,SUS316L
| Ultra fine wire | |
| Diameter | φ0.0025mm～φ0.500mm |
| Tensile Strength | 680～3000Mpa |
| Blade wire for catheter tube | |
Stainless steel flat wire (Ribbon)
SUS304,SUS316L
| Ultra thin flat wire 0.010mm～0.350mm | |
| Thickness | 0.030mm～1.500mm |
| Width | |
| Ratio of thickness to width allowed up to 1:20 | |
| Blade flat wire for catheter tube | |
